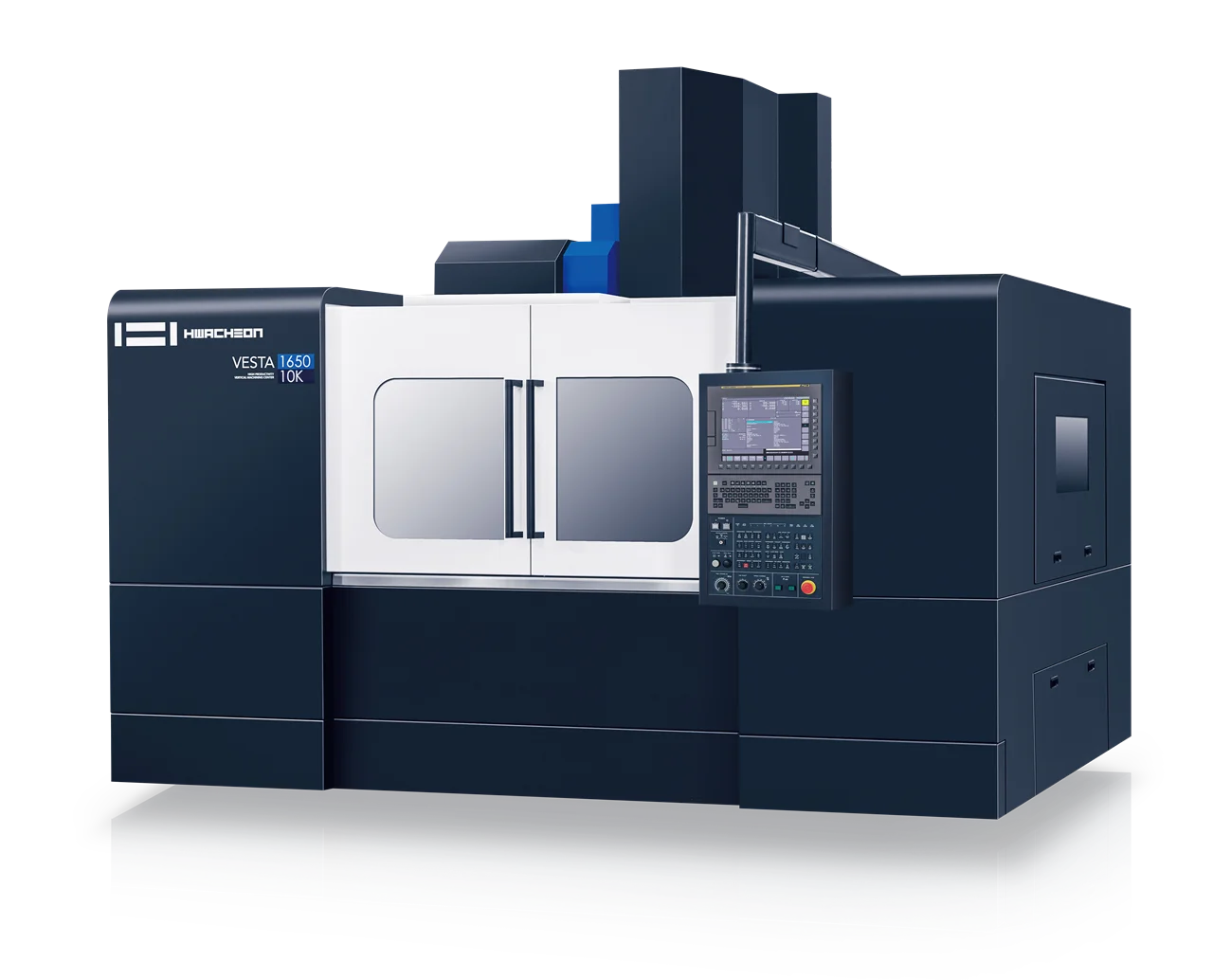

VESTA-1650 ensures high productivity and high precision based on a machine structure optimized for parts machining. Cooling of the spindle and frames minimizes thermal displacement to ensure high precision during long-time machining.
Hwacheon software installed on the machine improves productivity and precision, provides better machining quality compared to existing machines.
Machine Specification
| Item | VESTA-1650 | ||||
|---|---|---|---|---|---|
| 10K BT-40 | 12K BT-40 | 15K BT-40 | 8K BT-50 | ||
| Travel | |||||
| X-axis Stroke | mm | 1,650 | 1,650 | 1,650 | 1,650 |
| Y-axis Stroke | mm | 750 | 750 | 750 | 750 |
| Z-axis Stroke | mm | 675 | 675 | 675 | 675 |
| Distance from Table Surface to Spindle Gauge Plane | mm | 150 ~ 825 | 150 ~ 825 | 150 ~ 825 | 150 ~ 825 |
| Distance between Column to the center of the spindle | mm | 760 | 760 | 760 | 760 |
| Table | |||||
| Working Surface | mm | 1,700 x 750 | 1,700 x 750 | 1,700 x 750 | 1,700 x 750 |
| Table Loading Capacity | kgf | 1,500 | 1,500 | 1,500 | 1,500 |
| Table Surface Configuration (T slots W x P – No. of slots) | mm | 18 x 100 / 7ea | 18 x 100 / 7ea | 18 x 100 / 7ea | 18 x 100 / 7ea |
| Spindle | |||||
| Max Spindle Speed | rpm | 10,000 (Opt.: CTS) | 12,000 (Opt.: CTS) | 15,000 (Opt.: CTS) | 8,000 (Opt.: CTS) |
| Spindle Motor | kW | 18.5 / 11 | 18.5 / 11 | 18.5 / 11 | 15 / 11 [CTS : 26 / 22] |
| Type of Spindle Taper Hole | – | ISO#40, 7/24 Taper (BT-40) | ISO#40, 7/24 Taper (BT-40) | ISO#40, 7/24 Taper (BT-40) | ISO#50, 7/24 Taper (BT-50) |
| Spindle Bearing Inner Diameter | mm | Ø70 | Ø70 | Ø70 | Ø90 |
| Type of Spindle | – | Direct-Coupled | Direct-Coupled | Direct-Coupled | Direct-Coupled |
| Method of Spindle Lubrication | – | Grease | Air-Oil | Air-Oil | Grease |
| Method of Spindle Cooling | – | Jacket Cooling (Fan Cooler) | Jacket Cooling (Oil Cooler) | Jacket Cooling (Oil Cooler) | Jacket Cooling (Fan Cooler) |
| Feedrate | |||||
| Rapid Traverse (X / Y / Z) | m/min | 30 / 30 / 24 | 30 / 30 / 24 | 30 / 30 / 24 | 30 / 30 / 24 |
| Motor | |||||
| Servo Motor (X / Y / Z) | kW | 3 / 3 / 3 | 3 / 3 / 3 | 3 / 3 / 3 | 3 / 3 / 3 |
| Coolant Motor (Spindle) | kW | 0.4 | 0.4 | 0.4 | 0.4 |
| Spindle Cooler (50/60Hz) | kW | 0.18 | 2.8 / 3.2 | 2.8 / 3.2 | 0.18 |
| ATC | |||||
| Type of Tool Shank | – | BT-40 (Opt.: CAT-40 / SK-40) | BT-40 (Opt.: CAT-40 / SK-40) | BT-40 (Opt.: CAT-40 / SK-40) | BT-50 (Opt.: CAT-50 / SK-50) |
| Type of Pull Stud | – | MAS P40T-1 (45˚) | MAS P40T-1 (45˚) | MAS P40T-1 (45˚) | BT-50 (90˚) |
| Tool Storage Capacity | ea | 30 (Opt.: 40 / 60) | 30 (Opt.: 40 / 60) | 30 (Opt.: 40 / 60) | 24 (Opt.: 32 / 40) |
| Max. Tool Diameter (with / without Adjacent Tools) | mm | Ø78 / Ø150 | Ø78 / Ø150 | Ø78 / Ø150 | Ø110 / Ø220 |
| Max. Tool Length | mm | 300 | 300 | 300 | 350 |
| Max. Tool Weight | kgf | 8 | 8 | 8 | 20 |
| Method of Tool Selection | – | Memory Random | Memory Random | Memory Random | Memory Random |
| Power Sources | |||||
| Electric Power Supply | kVA | 45 | 45 | 45 | 45 [CTS : 55] |
| Compressed Air Supply (Pressure x Consumption) | – | 0.5~0.7MPa x 690Nℓ/min | 0.5~0.7MPa x 690Nℓ/min | 0.5~0.7MPa x 690Nℓ/min | 0.5~0.7MPa x 690Nℓ/min |
| Tank Capacity | |||||
| Spindle Cooling / Lubrication | ℓ | 20 / 6 | 20 / 6 | 20 / 6 | 20 / 6 |
| Coolant | ℓ | 500 | 500 | 500 | 500 |
| Machine Size | |||||
| Height | mm | 3,180 [CTS : 3,197] | 3,180 [CTS : 3,197] | 3,180 [CTS : 3,197] | 3,208 [CTS : 3,408] |
| Floor Space (L x W) | mm | 4,200 x 4,264 | 4,200 x 4,264 | 4,200 x 4,264 | 4,200 x 4,264 |
| Weight | kgf | 12,000 | 12,000 | 12,000 | 12,500 |
| NC Controller | – | Fanuc 0i-MF Plus | Fanuc 0i-MF Plus | Fanuc 0i-MF Plus | Fanuc 0i-MF Plus |
