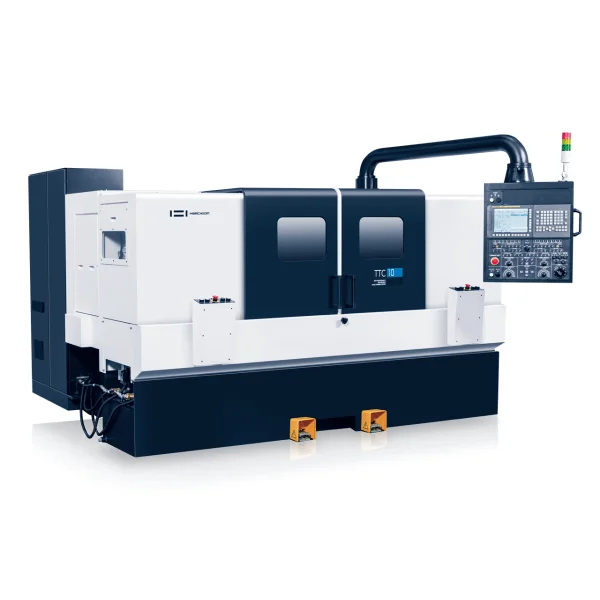

TTC-10 provides excellent productivity for flanges through its symmetrical independent Z-axis twin spindle structure and short spindle distance.
Highly rigid box-way feed structure and bed structure provides a rigid and stable heavy duty cutting while maintains high precision even during long-term processing by minimizing thermal displacement.
Machine Specification
| Item | TTC-10 | |
|---|---|---|
| Capacity | ||
| Swing over bed | mm | Ø500 |
| Max Cutting Diameter | mm | Ø400 |
| Standard Cutting Diameter | mm | Ø320 |
| Max Cutting Length | mm | 203 |
| Chuck Size | inch | 10 + 10 |
| Spindle | ||
| Type of Spindle Nose | ASA | A2-8 |
| Max Spindle Speed | rpm | 2,000 |
| Through Spindle Hole Diameter | mm | Ø77 |
| Max Bar Size | mm | Ø59 |
| Spindle Bearing Inner Diameter | mm | Ø120 |
| Spindle Motor | kW | 18.5/15 (Opt : 22 / 18.5) |
| Turret | ||
| Number of Tool Station | ea | 12 + 12 |
| Tool Size (Out Dia x Boring bar size) | mm | □25 × Ø50 |
| Turret Indexing Time | sec/step | 0.4 |
| Axes | ||
| Rapid Traverse (X / Z) | m/min | 30 / 30 |
| Max. Stroke (X / Z) | mm | 215 / 230 |
| Feed Motor (X / Z) | kW | 4.0 / 3.0 |
| Tank Capacity | ||
| Lubrication | ℓ | 12 |
| Hydraulic | ℓ | 50 + 50 |
| Coolant | ℓ | 380 |
| Power Sources | ||
| Electrical Power Supply | kVA | 75 |
| Machine Size | ||
| Height | mm | 2,046 |
| Floor Space (L x W) | mm | 3,000 x 2,840 |
| Weight | Kgf | 9,500 |
| NC Controller | – | Fanuc 0i-TF (2 Paths) |
