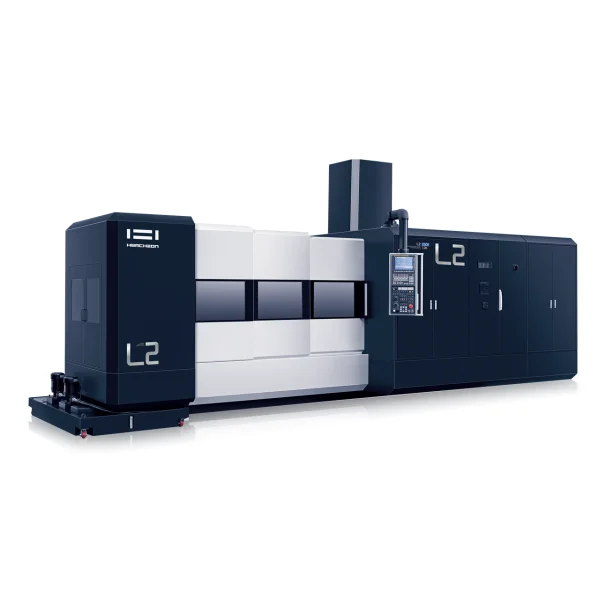

L2 3000

Y-Axis 1,100 mm, Double Column Vertical Machining Center for Plates

L2 3000 ensures precise machining with its low-centered double-column structure and high quality in-house designed spindle. Cooling of the spindle and frames minimizes thermal deformation to ensure high precision during long-time machining.

Large set-up area and high precision machining capability for a long period of time enables a wide range of applications from cutting plates to unmanned work by installing multiple vises.

Hwacheon software installed on the machine improves productivity and precision, provides better machining quality compared to existing Machining Centers.

Machine Specification
ItemL2 3000
12K20K
Travel
X-axis Strokemm3,0003,000
Y-axis Strokemm1,1001,100
Z-axis Strokemm500500
Max. Distance between table surface
to Spindle Nose
mm100 ~ 600100 ~ 600
Table
Table Sizemm3,000 x 1,1003,000 x 1,100
Distance Between Columnsmm1,3501,350
Max. Loading Capacitykgf2,0002,000
T-Slot
(Slot W x P / No. of slots)
mm18 x 130 / 7ea18 x 130 / 7ea
Spindle
Max Spindle Speedrpm12,000
(Opt.: CTS)
20,000
Spindle MotorkW18.5 / 1122 / 18.5
Type of Spindle Taper HoleBT-40BT-40
Spindle Bearing Inner DiametermmØ70Ø70
Type of SpindleDirect-CoupledBuilt-in Motor
Method of Spindle LubricationGreaseOil-jet
Method of Spindle CoolingJacket Cooling
(Oil Cooler)
Jacket Cooling
(Oil Cooler)
Feedrate
Rapid Traverse
(X / Y / Z)
m/min24 / 36 / 3624 / 36 / 36
Motor
Feed-Axis
(X / Y / Z)
kW6 / 4 / 46 / 4 / 4
Coolant MotorkW1.11.1
Spindle Cooler (50/60Hz)
(50 / 60 Hz)
kW2.8 / 3.25.0 / 5.6
ATC
Type of Tool ShankBT-40BT-40
Type of Pull StudMAS P40T-1 (45°)MAS P40T-1 (45°)
Tool Storage Capacityea3030
Max. Tool Diameter
(Adjacent Tool O / X)
mmØ75 / Ø150Ø75 / Ø150
Max. Tool Lengthmm350350
Max. Tool WeightKgf88
Method of Tool SelectionMemory Random
(Opt.: Fixed Address)
Memory Random
(Opt.: Fixed Address)
Power Source
Electric Power SupplykVA4545
Compressed Air
(Pressure x Consumption)
0.5~0.7MPa
x 690Nℓ/min
0.5~0.7MPa
x 690Nℓ/min
Tank Capacity
Spindle Coolant4040
Lubrication22
Coolant510510
Machine Size
Heightmm2,9452,945
Floor Space
(L x W)
mm8,900 x 3,2108,900 x 3,210
Weightkgf19,00019,000
NC ControllerFanuc 0i-MFFanuc 0i-MF
